The Ultimate Crusher Guide: Which Machine is Right for Your Job?

In the world of mining, quarrying, and construction, your crusher is the heart of the operation. But with so many types available, choosing the right one can feel overwhelming. Jaw, Cone, Impact... what's the difference, and which one will deliver the results you need?

Don't worry. We're here to break it down. Consider this your expert guide to the heavy-hitters of the crushing world. Let's find the perfect machine to power your productivity.

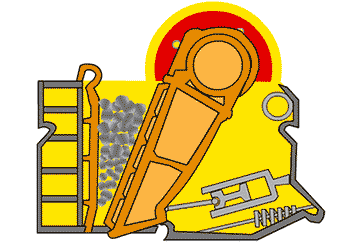

1. Jaw Crusher: The Primary Workhorse

Think of the Jaw Crusher as the powerful first step in any serious crushing circuit. It operates much like a mechanical jaw, using a moving and a stationary plate to apply immense compressive force, easily breaking down the largest and toughest rocks.

Key Advantages:

• High Crushing Ratio: Powerfully reduces large feed material in a single pass.

• Built to Last: Features a simple, robust structure for reliable operation and straightforward maintenance.

• Cost-Effective: An economical choice for primary crushing with low operating costs.

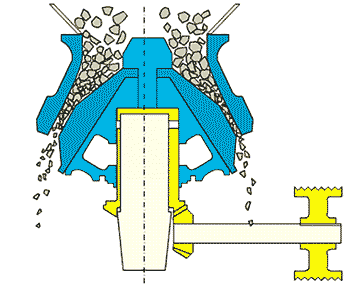

2. Cone Crusher: The Fine-Tuning Expert

While the Jaw Crusher handles the initial heavy lifting, the Cone Crusher excels at the next stage. It uses a rotating cone within a fixed bowl to compress and crush material, making it perfect for secondary and tertiary crushing.

Key Advantages:

• Superior Output: Delivers high efficiency and a large processing capacity.

• Excellent Particle Shape: Produces uniform, cubical aggregate that is ideal for high-spec concrete and asphalt.

• Long Service Life: Designed for high performance with durable wear parts, ensuring low long-term costs.

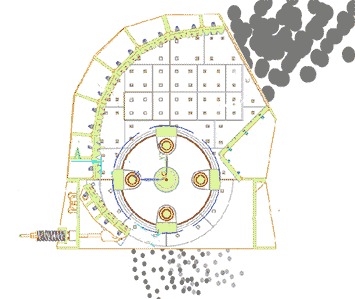

3. Impact Crusher: The Master of Shaping

The Impact Crusher works on a different principle: "rock-on-rock" collision. Material is thrown at high speed by a rotor against breaker plates, causing it to shatter along natural fissures. This process is repeated until the desired size is achieved. This machine is also known as a Counterattack Crusher.

Key Advantages:

• Exceptional Product Quality: Produces excellently shaped, cubical products with less stress, perfect for premium applications.

• High Efficiency: Offers high output with relatively low energy consumption.

• Durable & Smart Design: The rock-on-rock action creates a protective layer, reducing wear and tear on the machine's body.

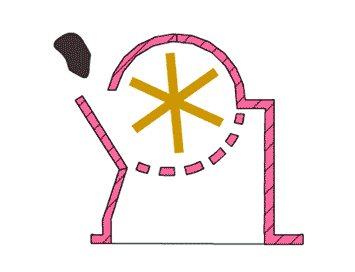

4. Hammer Crusher: The Simple & Effective Solution

As the name suggests, this crusher uses high-speed rotating hammers to strike and shatter material upon entry. It's a straightforward and highly effective method for achieving significant size reduction in a single machine.

Key Advantages:

• High Productivity: Capable of high throughput and delivers a small, uniform product size.

• Compact & Simple: Features a simple structure and a small footprint.

• Reduces Over-Crushing: Efficiently breaks material without creating excessive fine particles.

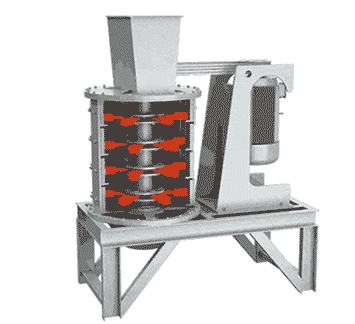

5. Vertical Shaft Impactor (VSI) / Vertical Crusher: The Fine Grinding Powerhouse

Material is fed into the center of a high-speed rotor and thrown centrifugally against an outer wear plate or anvil ring. This intense impact and grinding action makes the VSI an excellent machine for producing manufactured sand or performing fine crushing and shaping.

Key Advantages:

• Fine Crushing & Coarse Grinding: A versatile machine that excels at producing fine, high-quality end products.

• High Crushing Rate & Low Wear: Engineered for efficiency, resulting in a high reduction ratio and low operating costs.

• Simple & Reasonable Structure: Easy to operate and maintain.

6. The Roller Crusher Family: Precision and Control

Roller crushers use compressive force as one or more rollers press material against another surface. They are excellent for achieving precise product sizes with minimal fines, especially on softer, more friable materials.

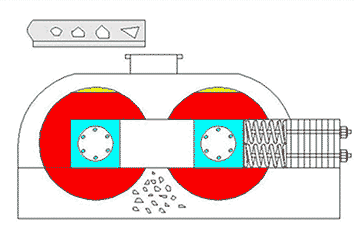

• Double (Twin) Roll Crusher: This classic design uses two rollers rotating towards each other to pull material into the crushing chamber. It’s compact, easy to operate, and features excellent dust seals to maintain a cleaner work environment.

• Toothed Roller Crusher: Equipped with special wear-resistant teeth, this machine splits and shears material rather than just crushing it. It offers the dual function of screening and crushing and includes overload protection for enhanced safety and a long service life.

• Single Roll Crusher: This machine crushes material between a single toothed roller and an adjustable jaw plate. It’s ideal for brittle materials and allows for precise control over the final product size by adjusting the gap.

Putting It All Together with FGMachinery

In a real-world application, these machines rarely work alone. A typical high-performance production line is a carefully integrated system, often starting with a Vibrating Feeder, moving to a Jaw Crusher for primary crushing, then to a Cone or Impact Crusher for secondary/tertiary crushing, and finishing with a Vibrating Screen to sort the final products.

Achieving the perfect balance for your project demands expertise. At FGMachinery, we specialize in designing custom crushing solutions tailored to your specific goals for output, product quality, and profitability. Our team of experts is ready to help you configure the ideal production line from our comprehensive range of equipment.

Ready to build a more productive and profitable operation? Explore our solutions and contact our team today at https://www.fgcrusher.com/.
