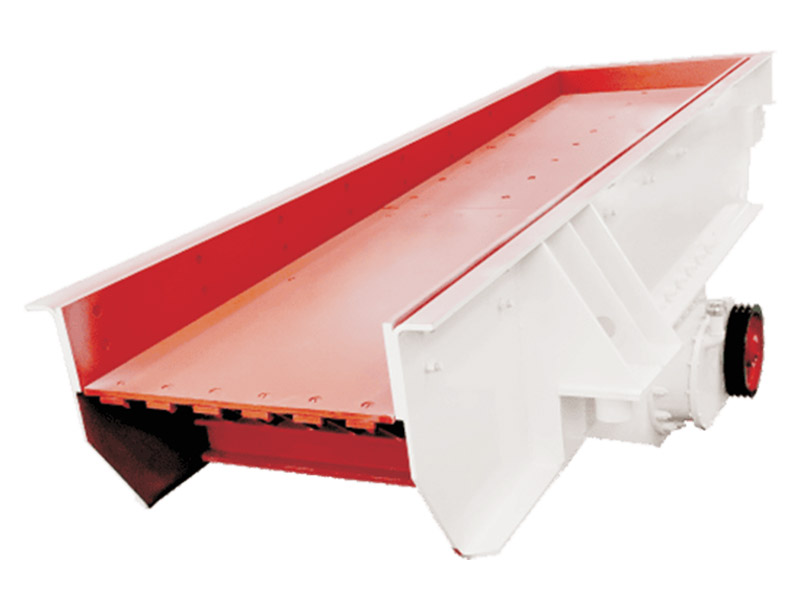

Quality ZSW Series Motor Vibrating feeders For Mining

The ZSW series vibrating feeder is primarily used for continuous and uniform feeding of materials before the primary crusher, while also screening fine materials to increase crusher capacity. Its dual-eccentric shaft vibrator design allows the equipment to withstand the impact of falling bulk materials, resulting in a high feeding capacity. During the production process, it delivers bulk and granular materials from the storage silo to the receiving device in a uniform, timed, and continuous manner, preventing device freezes caused by uneven feeding and extending equipment life. Feeders are available in either steel plate or grate configurations. Steel plate feeders are primarily used in sand and gravel production lines, ensuring uniform material delivery to the crushing equipment. Grate feeders provide coarse material screening, making the system more economical and rational, making them essential equipment in crushing and screening processes. Consequently, these feeders are widely used in combined crushing and screening systems in industries such as metallurgy, coal mining, mineral processing, building materials, chemicals, and abrasives.

The ZSW series vibrating feeder is primarily used for:

1. Continuous and uniform feeding before coarse crushing, while simultaneously screening fine material to increase crusher capacity;

2. Uniform, timed, and continuous delivery of bulk and granular materials from the storage silo to the receiving device during operation;

3. Continuous and uniform feeding of crushing machinery in sand and gravel production lines to prevent blockage of the crusher receiving port;

4. Coarse screening of materials, including the dual-screen feeder, removes soil and other fine impurities from the incoming material;

5. This series of equipment is widely used in crushing and screening production lines in mining, gravel pits, metallurgy, building materials, chemicals, mineral processing, coal mining, and other industries.

FGM’s ZSW Series Motor Vibrating feeders are at your disposal:

1. Dual screening, combining soil removal with screening and feeding.

2. Simple structure, uniform feeding, excellent continuous performance, and adjustable excitation force.

3. Smooth operation and high efficiency.

4. Clear structure, easy adjustment, maintenance, and installation.

5. An eccentric block serves as the excitation source, ensuring stable operation, low noise, low power consumption, excellent adjustability, and no material rushing.

6. Flow rate can be adjusted and controlled at any time, making operation easy.

7. Excellent sealing, achieving fully enclosed feeding, eliminating the need for localized dust removal or gas protection.
