Heavy Duty Belt Conveyor for Sand/Gravel/Aggregate/Concrete/Ash

Heavy Duty Belt Conveyor for Sand/Gravel/Aggregate/Concrete/Ash



✅ Precision Material Handling

✅ Military-Grade Durability

✅ Smart Operation Ecosystem

✅ Value-Driven Engineering

Local after-sales team

  • Item No :

    FG201530
  • Order(MOQ) :

    1
  • Product Origin :

    China
  • Lead Time :

    20 days
  • Contact :

    +86 18820104928
  • Product Details

The belt conveyor produced by our company has the advantages of large conveying capacity, simple structure, convenient maintenance, and standard components. It is widely used in mining, metallurgy, coal and other departments to convey loose materials or finished goods. According to the conveying process requirements, it can be conveyed by a single unit, or it can be composed of multiple units or with other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different layout types of operation lines. The belt conveyor can be used in the ambient temperature range of -20℃ to +40℃, and the temperature of the conveyed material is below 50℃.



WORKING PRINCIPLE



The belt conveyor uses the conveyor belt as a traction and load-bearing component, and is a continuous conveying equipment for material conveying through the movement of the conveyor belt carrying the material. The conveyor belt is wound around the drive roller and the tensioning roller to form an infinite ring belt. The upper and lower conveyor belts are supported by rollers to limit the deflection and sag of the conveyor belt. The tensioning device provides the required tension for the normal operation of the conveyor belt. When working, the driving device drives the transmission roller, and the friction between the transmission roller and the conveyor belt drives the conveyor belt to run. The material is loaded on the conveyor belt and moves with the conveyor belt.

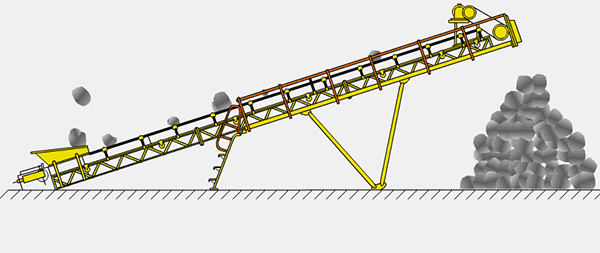

Belt conveyor for sand and gravel aggregates Working principle



Core Technical Advantages:



1. Precision Material Handling

  • High-Capacity Transport: 500-2,500 TPH adjustable throughput (variable frequency drive precision control)
  • Zero Spillage Design: Ceramic trim skirt sealing system (dust escape <5mg/m³)
  • Steep Incline Capability: ≤25° large inclination conveying without backflow (patented anti-slip tape)

2. Military-Grade Durability

  • Impact-resistant skeleton: ST1600 steel cord core layer (breaking strength ≥1600kN/m)
  • Armor-grade wear layer: 8+2mm EP400/3 rubber cover layer (lifespan >36,000 hours)
  • Never stuck roller: Nano-coated HDPE roller (-40℃ antifreeze/120℃ heat resistance)

3. Smart Operation Ecosystem

  • Changjiang Sand and Gravel Project Continuous operation for 28 months Average failure interval ↑63%
  • Inner Mongolia Aggregate Line -35℃ extreme cold operation, energy consumption ↓22%
  • Guangdong-Hong Kong-Macao Greater Bay Area reclamation project, salt spray corrosion environment, life extended by 2.1 times

4. Value-Driven Engineering

  • Full life cycle cost reduction plan
  • Energy-saving transmission module: permanent magnet motor + energy feedback device (power consumption per ton <0.12kW·h)
  • Quick repair structure design: modular bracket replacement <15 minutes
  • Intelligent operation and maintenance system: vibration analysis + wear prediction (maintenance cost ↓40%)

5. Exclusive advantages of Made in China

  • 72-hour emergency spare parts nationwide (covering 300+ prefecture-level cities)
  • Customized tape formula according to mineral material characteristics (special for basalt/granite/river pebbles)
  • GB/T 10595-2023 certification + CE dual standard compliance

6. Intelligent control

  • PLC central control: supports remote start/stop/emergency stop interlock
  • 5G IoT module: real-time return of operation data to mobile phone
  • Digital twin system: 3D model predicts fault points
Belt width(mm) Belt Length(m)/Power(kw) Belt Speed(m/s) Capaicty(t/h)
400 <1212. 2 12-20/2.2-4 20-25/3.0-7.5 1. 25-2. 0 30-60
500 <12/3 12-20/3-5.5 20-30/5.5-7.5 1. 25-2. 0 40-80
650 <12/4 12-20/4-5.5 20-30/5. 5-11 1. 25-2. 0 80-120
800 <10;4 10-15/4-5.5 15-30/5.5-15 1. 25-2. 0 120-200
1000 <10/5. 5 10-20/5. 5-11 20-40/11-22 1. 25-2. 0 200-320
1200 <1017. 5 10-20/7. 5-15 20-40/15-30 1. 25-2. 0 290-480
1400 <10111 10-20/11-22 20-40/22-45 1. 25-2. 0 400-680
1600 <10/15 10-20/22-30 20-50/30-75 1. 25-2. 0 600-1080



CASE STUDIES FROM VARIOUS INDUSTRIES
